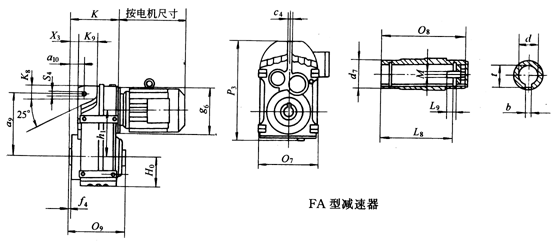

FA 型減 速 機(jī) 主要尺寸 /mm
|
型號 |
a9 a10 |
c4 f4 |
g6 |
h1 |
K8 K9 |
O7 O8 |
O9 P3 |
S4 H0 |
X3 |
d （H7） |
K |
d7 |
L8 |
L9 |
t b |
M |
|
FA37 |
158 31.5 |
12 2.5 |
120 |
112 |
30 41.5 |
169 120 |
123 250 |
14 74 |
7.5 |
30 |
145 |
45 |
105 |
17 |
33.3 8 |
M10 |
|
FA47 |
170 32 |
12 3 |
120 |
128.1 |
22 54 |
185 150 |
153 272 |
14 80 |
14 |
35 |
165 |
50 |
130 |
22 |
38.3 10 |
M12 |
|
FA67 |
218 41 |
16 3.5 |
160 |
159.5 |
52 67 |
217 180 |
184 343 |
22 97 |
12.5 |
40 |
230 |
55 |
156 |
29 |
43.3 12 |
M16 |
|
FA77 |
278 50 |
20 4 |
200 |
200 |
49 76 |
275 210 |
213 426 |
22 121 |
12 |
50 |
250 |
70 |
183 |
32 |
53.8 14 |
M16 |
|
FA87 |
346 62 |
26 4 |
250 |
246.7 |
57 85 |
336 240 |
243 531 |
22 152 |
16 |
60 |
300 |
85 |
210 |
36 |
64.4 18 |
M20 |
|
FA97 |
395 70 |
30 4 |
300 |
285 |
88 100 |
405 300 |
303 623 |
26 178 |
28 |
70 |
350 |
95 |
270 |
34 |
74.9 20 |
M20 |
|
FA107 |
485 88 |
36 2.5 |
350 |
332.4 |
105 121 |
450 350 |
353 717 |
26 200 |
32 |
90 |
400 |
120 |
310 |
40 |
95.4 25 |
M24 |
|
FA127 |
550 110 |
40 2.5 |
450 |
382.6 |
138 153 |
530 410 |
410 856 |
33 236 |
30 |
100 |
455 |
140 |
370 |
38 |
106.4 28 |
M24 |
